Sheeter Cutter Tshuab

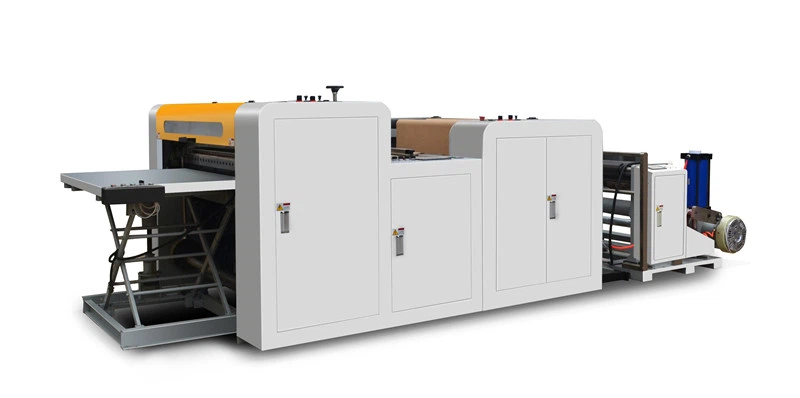

HQJ-D Sheeter Cutter Tshuab
Lub tshuab cutter no yog tsim rau kev sib cais thiab txiav ntau yam ntaub ntawv yob xws li ntawv, PVC PET zaj duab xis ntawv- yas, cov khoom siv ntau xim laminated, thiab lwm yam. Nws kuj tuaj yeem ua rau pem hauv ntej tus qauv rau kev txiav me me rau ntawv, ntawv nplaum, ntawv thiab zaj duab xis laminated cov ntaub ntawv ect. Multi-yob tib lub sij hawm kab rov tav. Vertical txiav. Lub tshuab no tau siv dav hauv kev tsim cov ntawv, cov khoom lag luam thiab luam ntawv, thiab yuav txhim kho kev ua haujlwm thiab nce txiaj ntsig rau koj lub tuam txhab.
Nws txais servo lub cev muaj zog rau kev tswj qhov ntev-ntev txiav. Nws siv pneumatic, photoelectric sensor rau kev tswj kev sib kis, nrog cov duab, hluav taws xob, roj ua ke, nws muaj cov haujlwm ntawm kev ua haujlwm yooj yim, siab precision, zoo stability, tsis tshua muaj suab nrov. Lub tshuab no muaj lub luag haujlwm ntawm lub sijhawm hloov pauv zaus, suav tsis siv neeg, tsis ua haujlwm los ntawm lub tswb sib nqus hmoov nruj tswj, tuaj yeem txiav vertically, txais yuav blower kom tshem tawm cov khib nyiab (optional device).
Khoom Description
|
Qauv |
HQJ-800D |
HQJ-1100D |
HQJ-1300D |
|
Max. Dav ntawm kev txiav |
800 hli |
1100 hli |
1300 hli |
|
Max. Txoj kab uas hla ntawm cov khoom |
Φ1400 hli |
Φ1400 hli |
Φ1400 hli |
|
Min. Dav ntawm kev txiav |
50 hli |
50 hli |
50 hli |
|
Ntev ntawm kev txiav |
20-1200 hli |
20-1200 hli |
20-1200 hli |
|
Ceev |
10-180times/min |
10-180times/min |
10-180times/min |
|
Precision |
± 0.2 hli |
± 0.2 hli |
± 0.2 hli |
|
Tag Nrho Lub Zog |
5,5 kwv |
6.5 kwm |
7.5 kwm |
|
Qhov hnyav (kwv yees) |
2500 kg |
2800kg ib |
3000 kg |
|
Zuag qhia tag nrho dimension (LxWxH) (mm) |
5000×1600×1300 |
5000×1950×1300 |
5000×2150×1300 |
